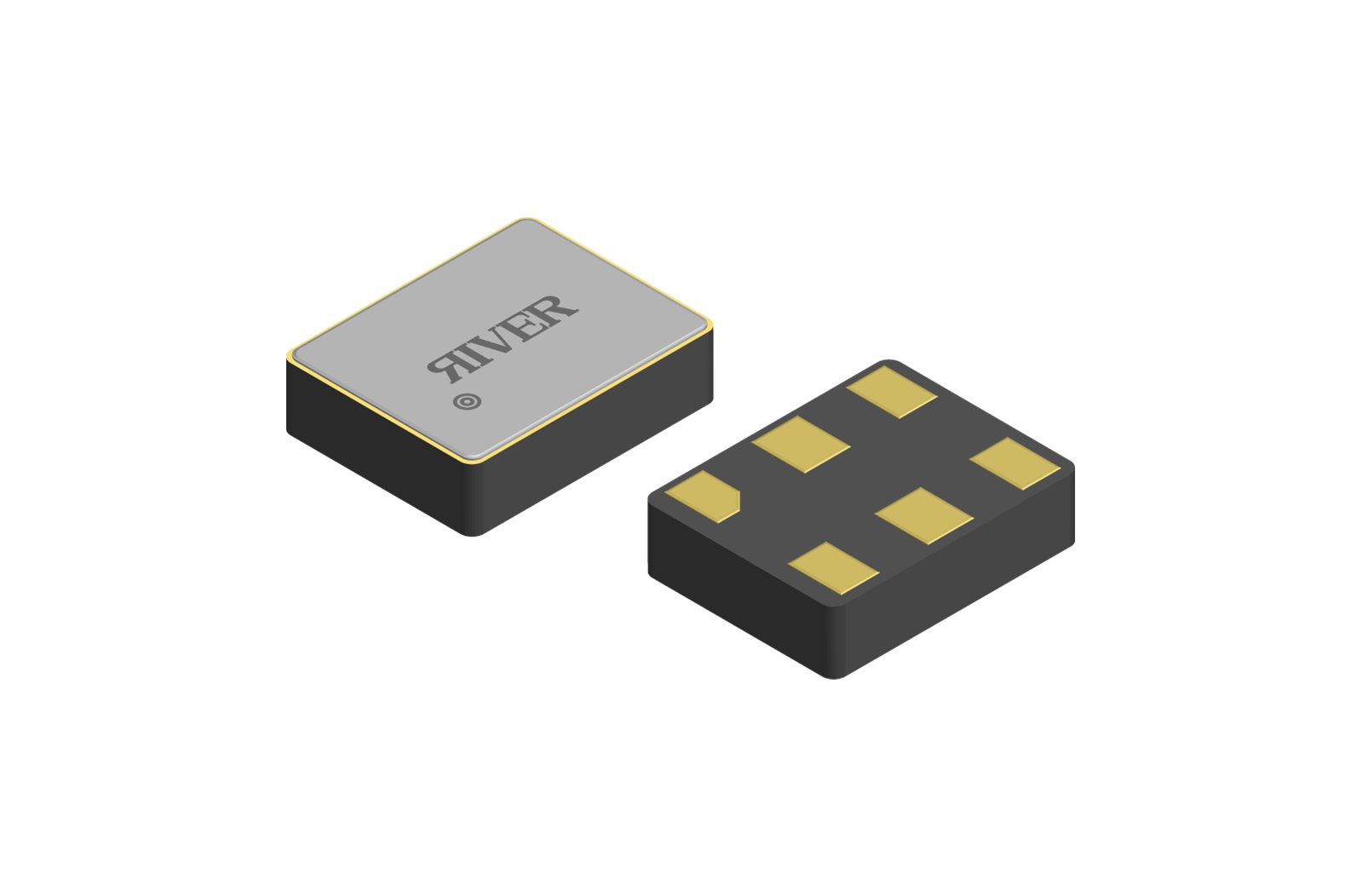

FCXO-04: 3225 Size Standard Crystal Oscillator

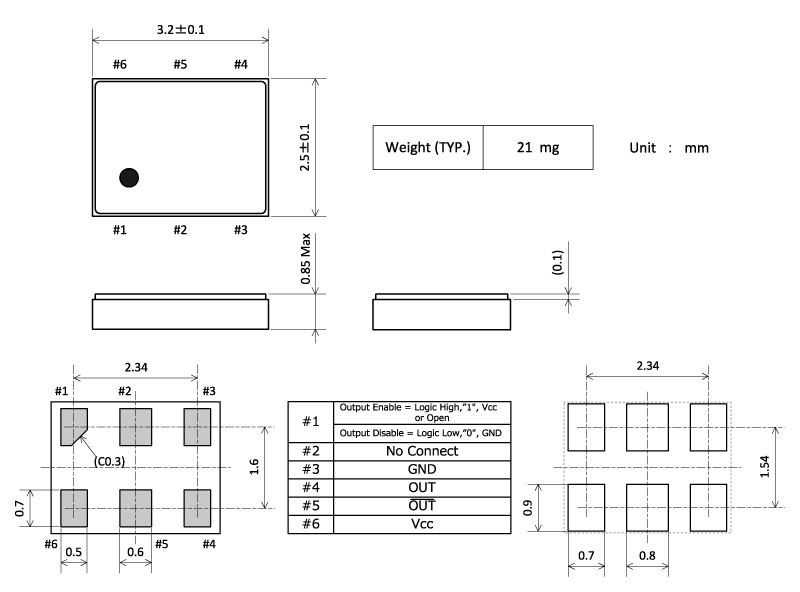

Size / Dimension	3.20mm x 2.50mm
Height - Seated (Max)	0.85mm
Applications We Support	Industrial Precision Timing Solutions Communications & Enterprise

Item			Symbol	MIN	TYP	MAX	Conditions
Output frequency (MHz)			fo	Select from the list below
Storage temperature (°C)			T_stg	-55	-	+125
Operating temperature (°C)			T_use	-40	-	+85
Frequency tolerance (ppm)			f_tol	-50	-	+50
Supply voltage (V)	Type L		V_cc	2.97	3.3	3.63
Supply voltage (V)	Type N		V_cc	2.375	2.5	2.625
LVDS	Current consumption (mA)		Icc	-	23	-
	Output voltage (V)		V_OD	175	350	-
	VOD change (mV)		Δ V_OD	-	-	50
	Offset voltage (V)		V_OS	-	1.25	-
	VOS change (mV)		Δ V_OS	-	-	50
	LVDS load condition (Ω)		L_LVDS	-	100	-	Between Outputs
	Rise time (ps)		tr		350	500	20 % to 80 %
	Fall time (ps)		tf		350	500	80 % to 20 %
	Symmetry (%)		SYM	45	-	55
LVPECL	Current consumption (mA)		Icc	-	54	-
	Output voltage (V)		V_OH	V_cc - 1.03	-	V_cc - 0.6
	Output voltage (V)		V_OL	V_cc - 1.85	-	V_cc - 1.6
	ECL load condition (Ω)		L_ECL	-	50	-	Terminated to V_cc -2V
	Rise time (ps)		tr		-	250	20 % to 80 %
	Fall time (ps)		tf		-	250	80 % to 20 %
	Symmetry (%)		SYM	45	-	55
OE Function	Input voltage (V)	output Enable	V_IH	0.7 * V_cc	-	1.1 * V_cc
	Input voltage (V)	output Disable	V_IL	-	-	0.3 * V_cc
	Disable current (mA)		I_dis	-	16	-	OE = GND
	Enable time (ns)			-	-	100	OE= GND → V_cc
	Disable time (ns)			-	-	50	OE= V_cc → GND
Start-up time (ms)			t_str	-	-	10
Phase jitter (ps)				-	0.5	1	12kHz to 20MHz
