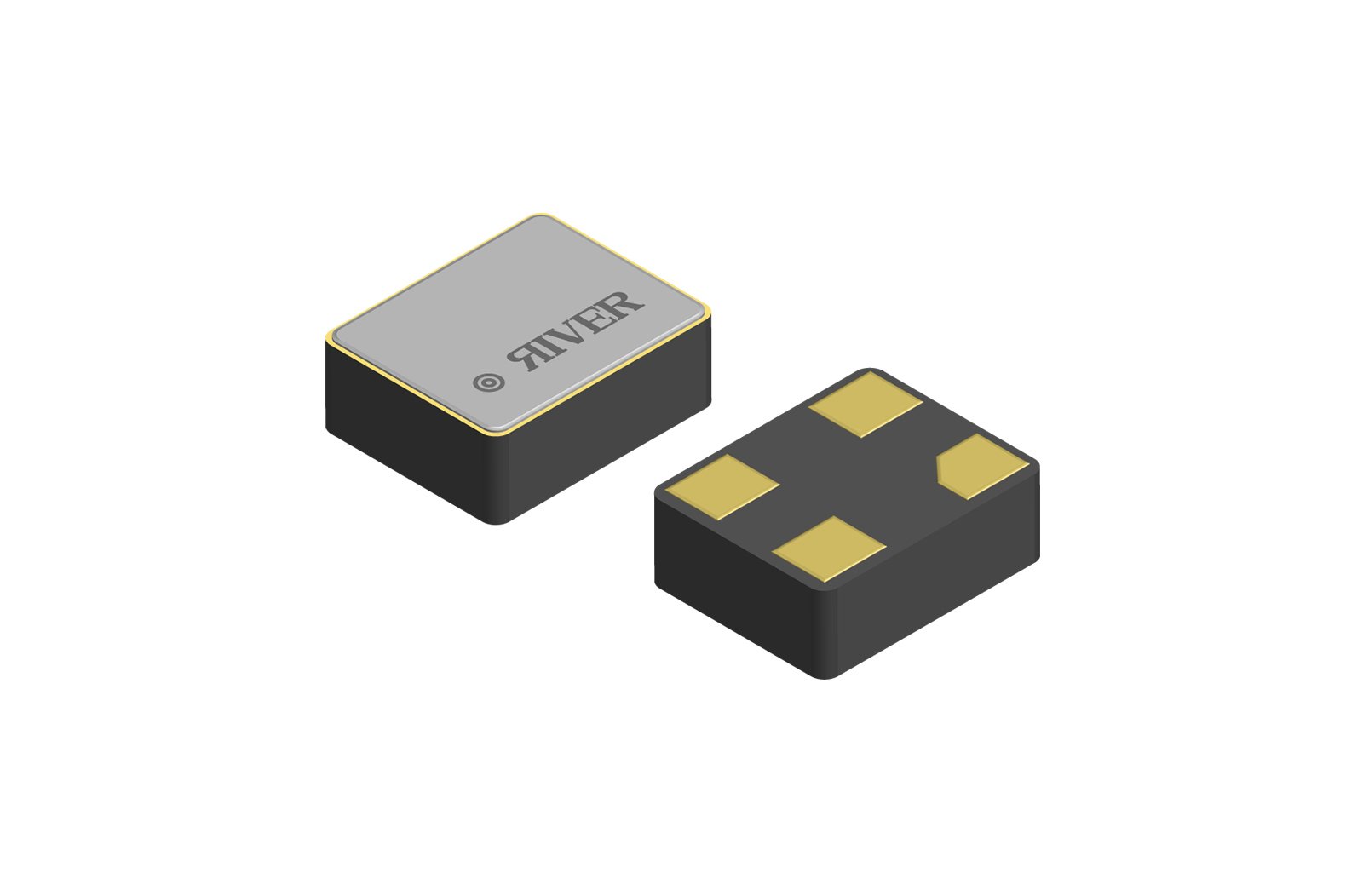

FCXO-05W: 2520 Size Automotive Grade Oscillator

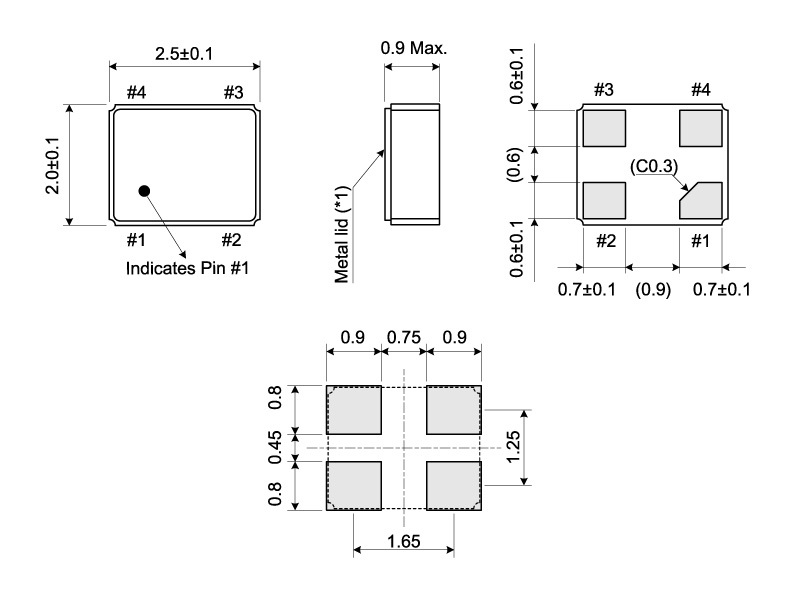

Size / Dimension	2.50mm x 2.00mm
Height - Seated (Max)	0.90mm
Applications We Support	Industrial Communications & Enterprise

Item	Specifications
Nominal frequency (MHz)	1.000 ～ 80.000
Frequency tolerance (ppm) (@ 25 °C)	±7, ±10, ±15, ±20, ±30, ±50, O.A, other
Storage temperature (°C) (Not applicable to packaging materials)	-55 ～ +125, other
Operating temperature (°C)	-20 ～ +70	-30 ～ +85	-40 ～ +85	-40 ～ +105	Other combinations
Frequency temperature characteristics (ppm) (Refer to 25 °C)	±10 ±15 ±20 ±30 ±50	±10 ±15 ±20 ±30 ±50	±15 ±20 ±30 ±50	±30 ±50	Other combinations

Item		Specifications	Conditions / Remarks
Supply voltage, V_DD (V)		+1.6 〜 +3.63
Current consumption (mA)		3.0 Max.	F = 40 MHz, V_DD = 3.0 V, No load
Stand-by current (µA)		10 Max.	Stand-by = “L”
Output voltage, V_OH (V)		V_DD 0.9 Min.	I_OH = −4 mA
Output voltage, V_OL (V)		0.1 Max.	I_OL = +4 mA
Output load (pF)		15 Max.
Output level		CMOS
Symmetry (Duty Cycle) (%)		50 ± 5
Rise time (ns)/ Fall time (ns)		5.0 Max.	10 % V_DD to 90 % V_DD level
Start-up time (ms)		2.0 Max.	V_DD = 3.3 V
Start-up time (ms)		5.0 Max.	V_DD = 1.8 V
Random Jitter, RJ (ps) *1		3.7 Typ.	V_DD = 3.3 V
Total Jitter, TJ (ps) *1		51 Typ.	V_DD = 3.3 V, TJ = n × RJ (n ≒ 14.1, BER = 10^-12)
Phase Jitter (ps)		1.0 Max.	V_DD = 3.3 V Offset frequency: 12 kHz 〜 5 MHz
Stand-by function (Pin #1) (V)	(High)	0.7V_DD Min.	Output (Pin #3) enabled
Stand-by function (Pin #1) (V)	(Low)	0.3V_DD Max.	Output (Pin #3) disabled = High-Z
Tape and reel (pcs/reel) (Reel diameter: Φ180 mm)		3000 Max.

FCXO-05W
