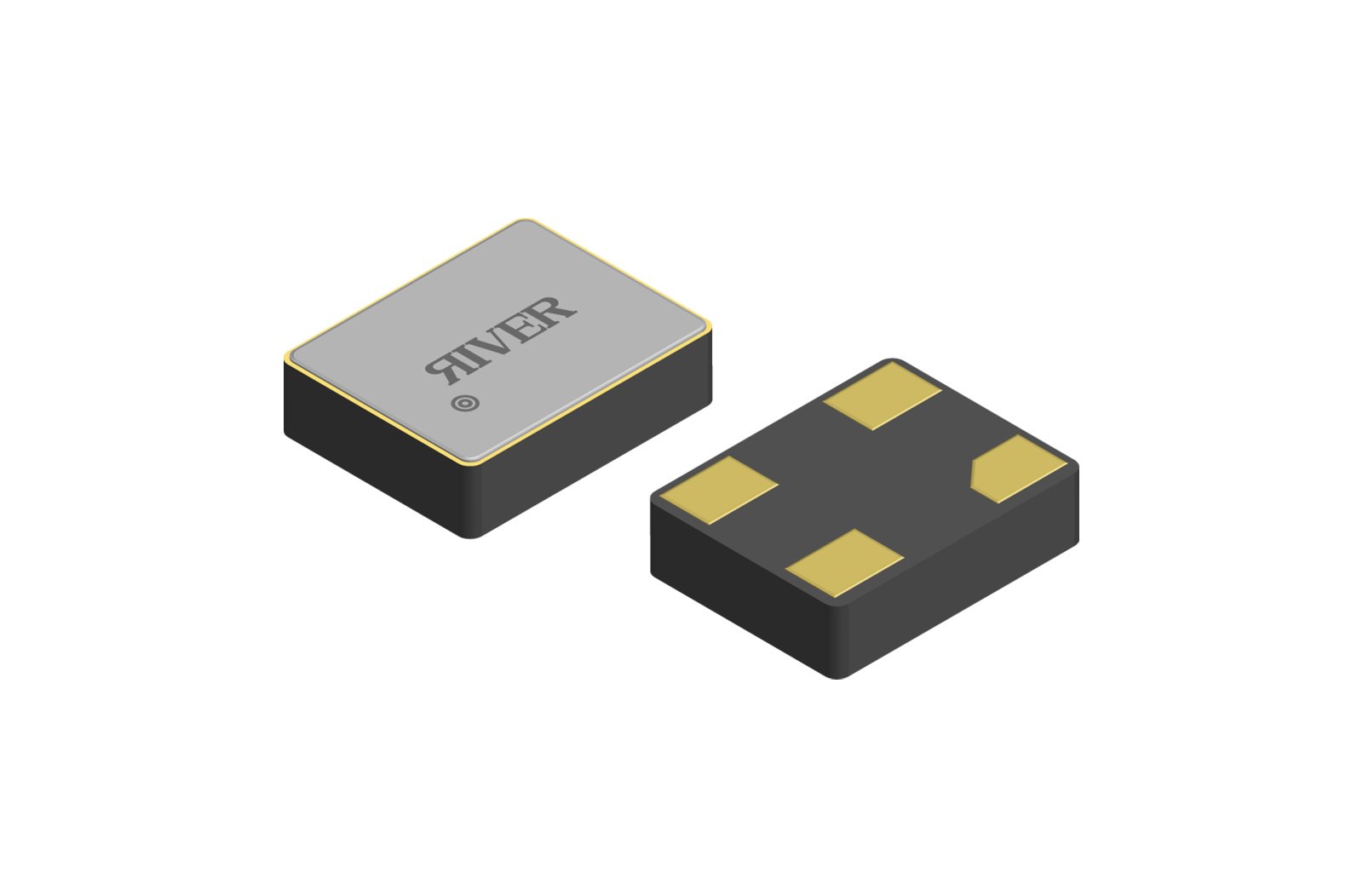

GTXO-04

MHz Crystal Oscillators

GTXO-04

detail__logo

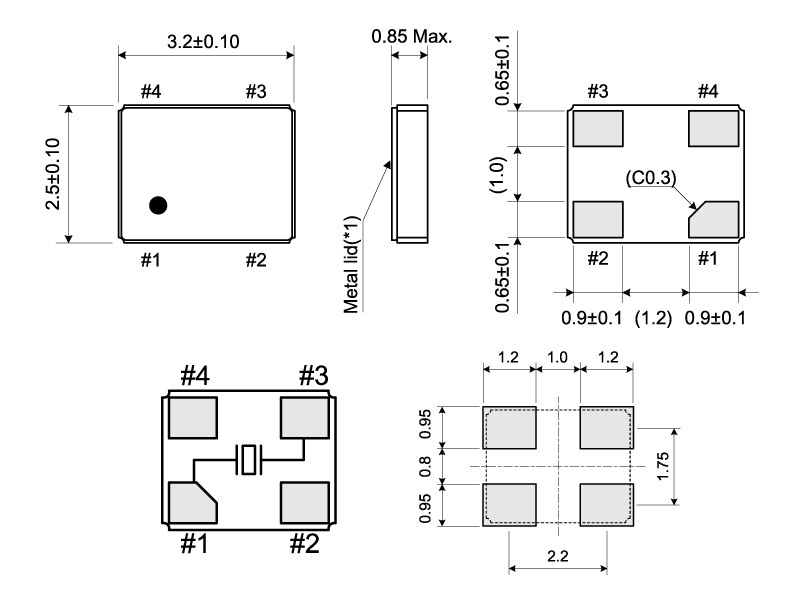

Size / Dimension 3.20mm x 2.50mm
Height - Seated (Max) 0.85mm
Applications We Support
GTXO-04_01
GTXO-04_image02
Item Specifications
  Min. Nom. Max. Conditions / Remarks
Nominal frequency (MHz) 1   150
Storage temperature (°C) -40 - +200
Operating temperature (°C) -40 - +200
Frequency stability (ppm) Standard -100 - +100 -40 ～ +200°C
High Precision -50 - +50 -40 ～ +200°C
Supply voltage, VDD (V) -10%
1.8
2.5
3.3
 +10%
Output CMOS
Current consumption Enable (mA) 5.8 8 10 F: 1 MHz ～ 150 MHz, VDD = 3.3 V, No load
Standby (µA) 35 60 100
Output voltage VOH 0.9 VDD     IOH = 60 mA, VDD = 3.3 V
VOL     0.1 VDD IOL = 1 mA, VDD = 1.8 V
Standby function VIH 0.7 VDD
VIL     0.3 VDD
Output load (pF)     15
Symmetry (Duty Cycle) (%) 45 50 55 VTH = 0.5 VDD
Rise time / Fall time (ns)   1.5 5.0 0.1 VDD ～ 0.9 VDD
Start-up time (ms)     10
Random Jitter, RJ (ps)   3.6   VDD = 3.3 V, BER = 10-12
WAVECREST 3100C Instrument
Total Jitter, TJ (ps)   51
Phase Jitter (ps)   20   Offset frequency: 12 kHz ～ 20 MHz

Key Features

  • High stability over extended temperature ranges (±50 ppm over -40℃ to 200℃)

  • Broad choice of available frequencies (1 MHz to 150 MHz)

  • Low current consumption, Typ. 8 mA (F = 150 MHz, VDD = 3.3 V, No load)
