TFX-04C: 1610 Size Low Profile kHz Crystal

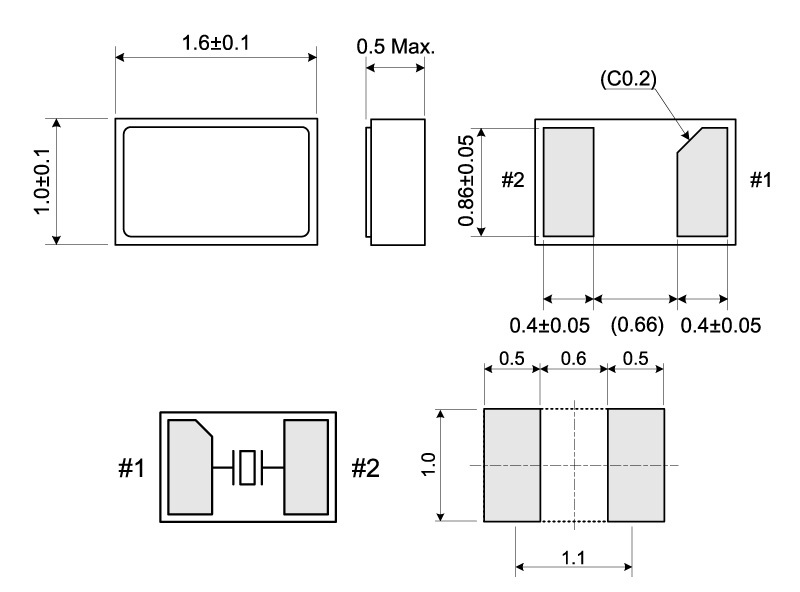

Size / Dimension	1.60mm x 1.00mm
Height - Seated (Max)	0.50 mm
Applications We Support	Communications & Enterprise Mobile Automotive Industrial

Item	Specifications
Nominal frequency (kHz)	32.768
Frequency tolerance (ppm) (@ 25 ℃)	±10, ±20, ±30, ±50, other
Storage temperature (℃)	−55 〜 +125, other (Not applicable to packaging materials)
Operating temperature (℃)	−20 〜 +70, −40 〜 +85, −40 〜 +105, other
Turnover temperature (℃)	25 ± 5
Temperature coefficient (K^-2)	−(0.03 ± 0.01) × 10^-6
Equivalent series resistance (kΩ)	60 Max.	other
Motional capacitance (fF) / Shunt capacitance (pF)	7.5 Typ. / 1.5 Typ.	other
Drive level (µW)	0.5 Max.
Load capacitance (pF)	5.0, 7.0, 9.0, 12.5 (Other values available)
Tape and reel (pcs/reel) (Reel diameter: Φ180 mm)	5000 Max.

TFX-04C
