FCX-05: 2520 Size Standard MHz Crystal

Item	Specifications
Nominal frequency (MHz)	12.000 〜 80.000
Frequency tolerance (ppm) (@ 25 ℃)	±7, ±10, ±15, ±20, ±30, ±50, O.A, other
Storage temperature (℃) (Not applicable to packaging materials)	−55 〜 +125, other
Operating temperature (℃)	-20 〜 +70	-30 〜 +85	-40 〜 +85	-40 〜 +105	-40 〜 +125	Other combinations
Frequency temperature characteristics (ppm) (Refer to 25 ℃)	±10 ±15 ±20 ±30 ±50	±10 ±15 ±20 ±30 ±50	±15 ±20 ±30 ±50	±30 ±50	±50	Other combinations
Equivalent series resistance [E.S.R]	As per below table
Drive level (µW)	200 Max.
Load capacitance (pF)	5.0 〜 (Please specify)
Tape and reel (pcs/reel) (Reel diameter: Φ180 mm)	3000 Max.

Nominal frequency (MHz)	Equivalent series resistance [E.S.R] (Ω)
12.000 〜 13.000	150 Max.
13.000 〜 17.0000	100 Max.
17.000 〜 23.000	80 Max.
23.000 〜 30.000	60 Max.
30.000 〜 80.000	50 Max.
other	other

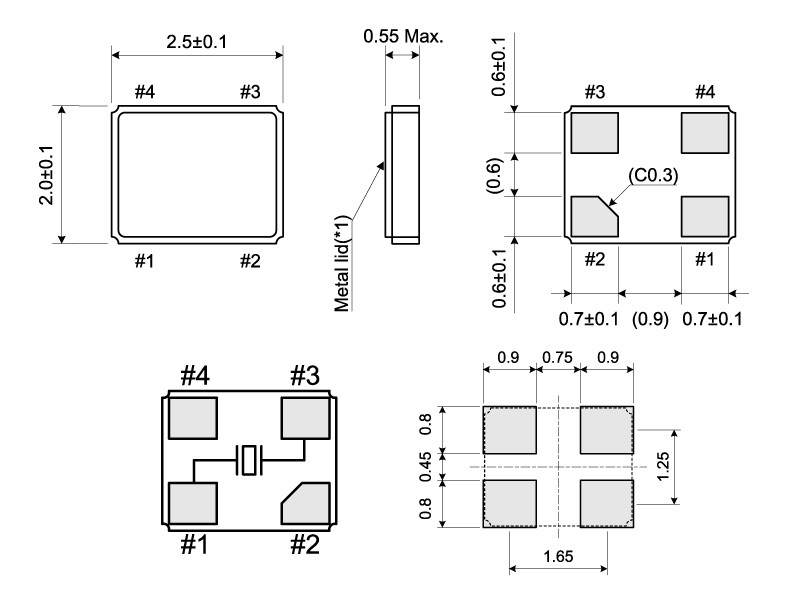

FCX-05
