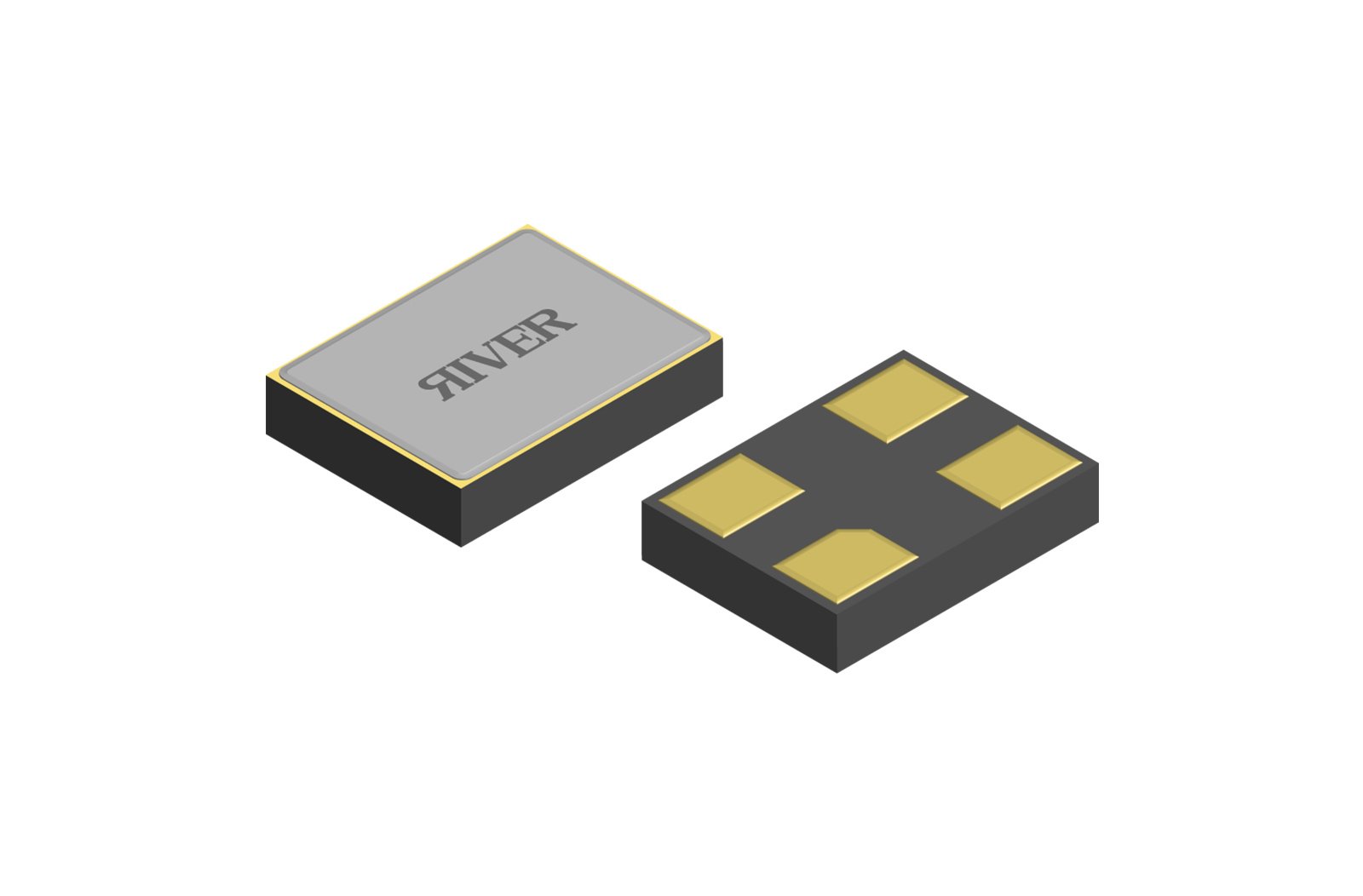

FCX-07L: 1612 Size Ultra-Low Profile MHz Crystal

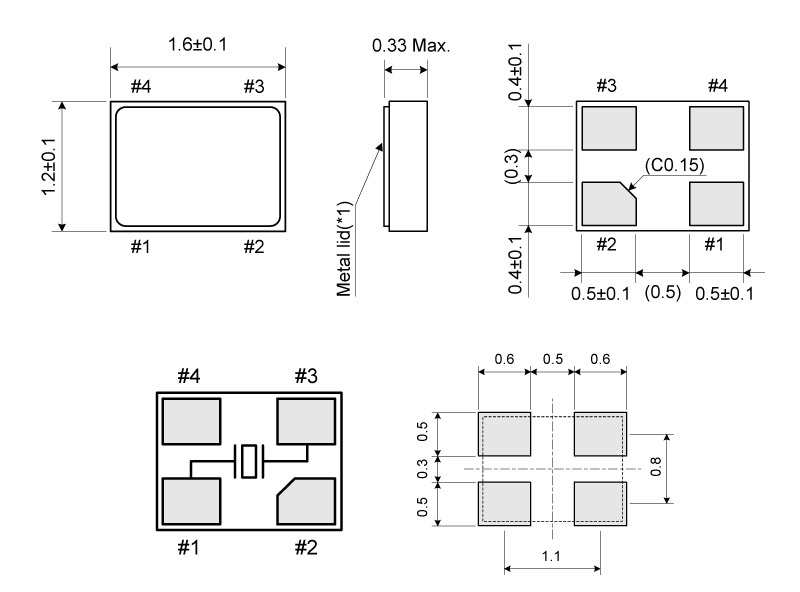

Size / Dimension	1.60mm x 1.20mm
Height - Seated (Max)	0.33 mm
Applications We Support	Automotive Medical & Healthcare Communications & Enterprise Industrial Mobile

Item	Specifications
Nominal frequency (MHz)	24.000 〜 80.000
Frequency tolerance (ppm) (@ 25 ℃)	±7, ±10, ±15, ±20, ±30, ±50, O.A, other
Storage temperature (℃) (Not applicable to packaging materials)	−55 〜 +125, other
Operating temperature (℃)	-20 〜 +70	-30 〜 +85	-40 〜 +85	-40 〜 +105	-40 〜 +125	Other combinations
Frequency temperature characteristics (ppm) (Refer to 25 ℃)	±10 ±15 ±20 ±30 ±50	±10 ±15 ±20 ±30 ±50	±15 ±20 ±30 ±50	±30 ±50	±50	Other combinations
Equivalent series resistance [E.S.R]	As per below table
Drive level (µW)	100 Max.
Load capacitance (pF)	5.0 〜 (Please specify)
Tape and reel (pcs/reel) (Reel diameter: Φ180 mm)	5000 Max.

Nominal frequency (MHz)	Equivalent series resistance [E.S.R] (Ω)
24.000 〜 26.000	150 Max.
26.000 〜 32.000	100 Max.
32.000 〜 50.000	60 Max.
50.000 〜 80.000	50 Max.
other	other

FCX-07L
