In the development of IoT devices, wearables, and smartwatches, hardware engineers constantly face the challenge of securing limited PCB space. While component miniaturization is an absolute requirement, blindly opting for smaller crystal devices can introduce a significant hurdle that threatens circuit design: the physical dilemma of increased Equivalent Series Resistance (ESR).
Why Does Miniaturization Lead to Higher ESR?
Crystal resonators generate precise frequencies by physically vibrating through the piezoelectric effect. Naturally, as the package size shrinks, the volume of the internal quartz blank must also decrease. This reduction in the vibrating mass lowers the conversion efficiency from electrical energy to mechanical vibration, ultimately resulting in a higher ESR.
High ESR poses severe risks that can lead to fatal design failures:
- Reduced Oscillation Margin: If the ESR is too high relative to the negative resistance of the circuit, oscillation may fail to start or suddenly stop at low temperatures.
- Increased Power Consumption: To overcome the high resistance, the microcontroller's drive level must be increased, directly leading to shorter battery life.
Ultra-miniaturization and low ESR. At River Eletec, we have shattered this seemingly inevitable trade-off through our proprietary microfabrication technologies.
Breaking the Limits with Quartz Photolithography
We overcome this limitation with our Quartz Photolithography Technology. Instead of mechanical cutting, we use exposure and etching for micron-level microfabrication. This dramatically enhances the energy-trapping effect and significantly improves Crystal Impedance (CI).
Table 1: ESR Comparison in the 1610 Size
Comparing our standard model with the low-ESR-optimized "TFX-04C" highlights the difference. By maximizing photolithography precision, we can suppress resistance to this extent within the exact same footprint.
| Model | Package Size | Height (Max) | ESR (Max) | Features |
|---|---|---|---|---|
| TFX-04 | 1.6 x 1.0 mm | 0.5 mm | 90 kΩ | Industry-standard compact performance |
| TFX-04C | 1.6 x 1.0 mm | 0.5 mm | 60 kΩ | Astonishingly low resistance (R1) for its size |
The Secret of the World-Class 1210 Size: Creating Space Without Adhesives
Pursuing ultimate miniaturization led us to the TFX-05X, a tuning fork crystal resonator in the world-class 1210 size (1.2 x 1.0 x 0.35 mm Max).
At this microscopic scale, maintaining low ESR is physically impossible with conventional package structures. To overcome this, River Eletec developed a "Crystal Case" using an entirely new Metal Diffusion Sealing (MDS) method.
This monolithic package integrates three layers of quartz wafers (Cap, Resonator, and Base). By forming metal layers on these wafers, we bond them directly using metal diffusion under heat and pressure in a vacuum.

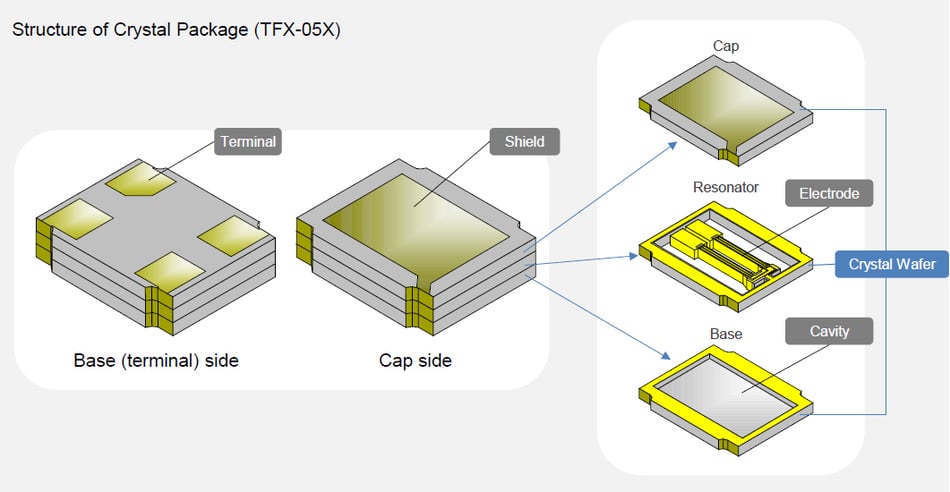

Diagram: Structure of the 3-Layer Crystal Case
- Layer 1 (Cap): A quartz lid that hermetically seals the top.
- Layer 2 (Resonator): A tuning fork quartz blank with excitation electrodes, micro-punched via photolithography.
- Layer 3 (Base): A foundation providing the cavity (space) required for the quartz blank to vibrate.
The greatest advantage is the complete elimination of conductive adhesives. Without the need for adhesive space, the internal cavity is maximized, allowing the quartz blank ample room to vibrate despite the minuscule external dimensions. This achieves both ultra-miniaturization and a low ESR of 90 kΩ. Furthermore, eliminating adhesive-derived outgassing and contamination risks drastically improves long-term reliability.
Table 2: Size and Weight Reduction Impact of MDS Technology
Compared to the conventional TFX-04, the evolutionary leap is clear.
| Comparison Item | TFX-04 (1610 size) | TFX-05X (1210 size) | Reduction Impact |
|---|---|---|---|
| Volume | Base | - | 47.5% reduction |
| Weight | Base | - | 75% significant weight reduction |
| ESR (Max) | 90 kΩ | 90 kΩ | Maintains equivalent performance |
Experience the "Ease of Oscillation" on Your Own PCB
"Ultra-compact, yet low ESR and easy to oscillate." For engineers designing circuits at the absolute limits, this provides an overwhelming sense of design margin and peace of mind.
To quickly meet diverse customer needs, River Eletec has a dedicated prototype sample team. We can ship free samples of in-stock products in as little as 3 days.
Don't just rely on theoretical datasheets—test the true stability and performance of our oscillators on your actual PCB.
